221 Compact Lever Wire Connectors – 28 Pc
₹650.00
Compact Lever – Simplify your wiring projects with this 28-piece 221 Compact Lever Wire Connector assortment, offering secure and reusable connections for various wire gauges.
Product highlights

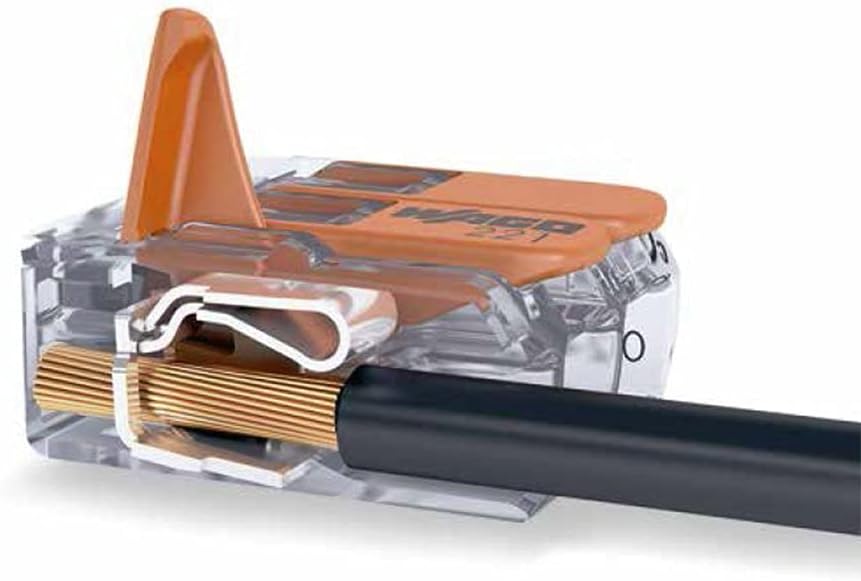

The 221 Compact Lever Wire Connectors boast a range of features that set them apart from conventional wiring methods. Each connector is designed with a clear, transparent housing made from high-quality polycarbonate, allowing for immediate visual verification of proper wire insertion and strip length. This transparency significantly reduces the risk of wiring errors and enhances safety. The internal clamping unit, made from copper, ensures excellent conductivity and a strong, vibration-proof connection. The operating levers are constructed from polyamide, providing robust and easy-to-use functionality. These materials are chosen for their durability, heat resistance, and electrical insulation properties, ensuring long-term reliability in various environments.

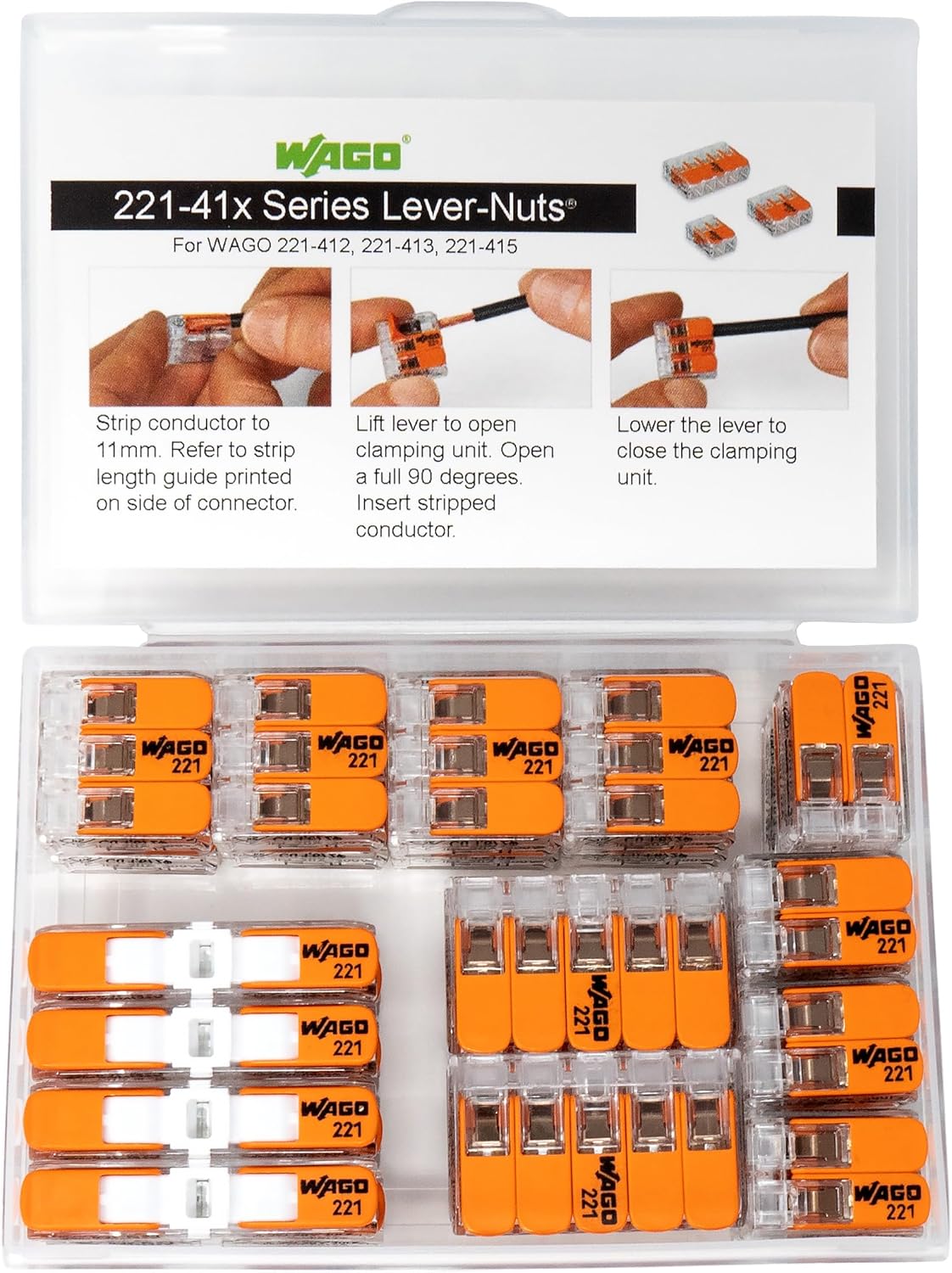

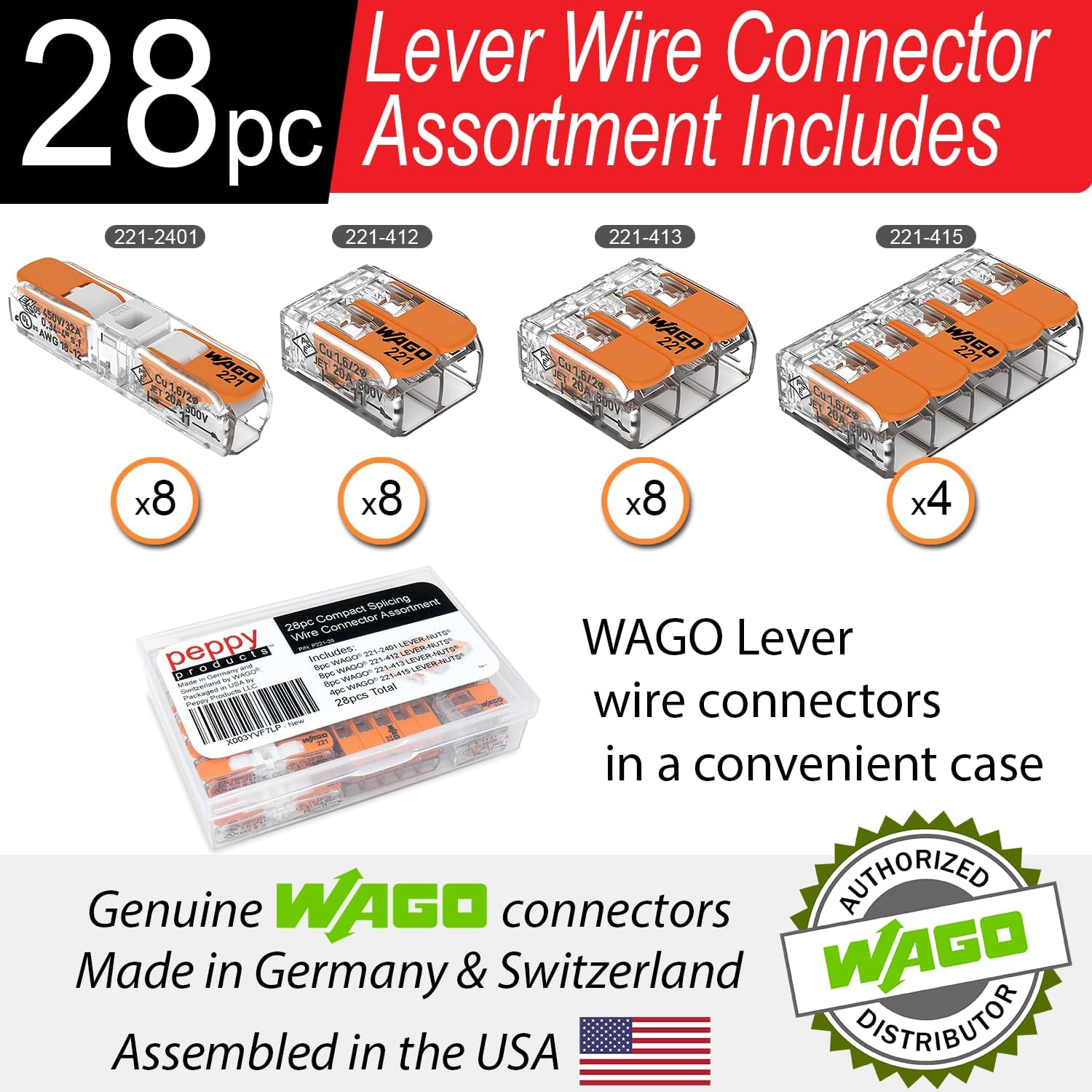

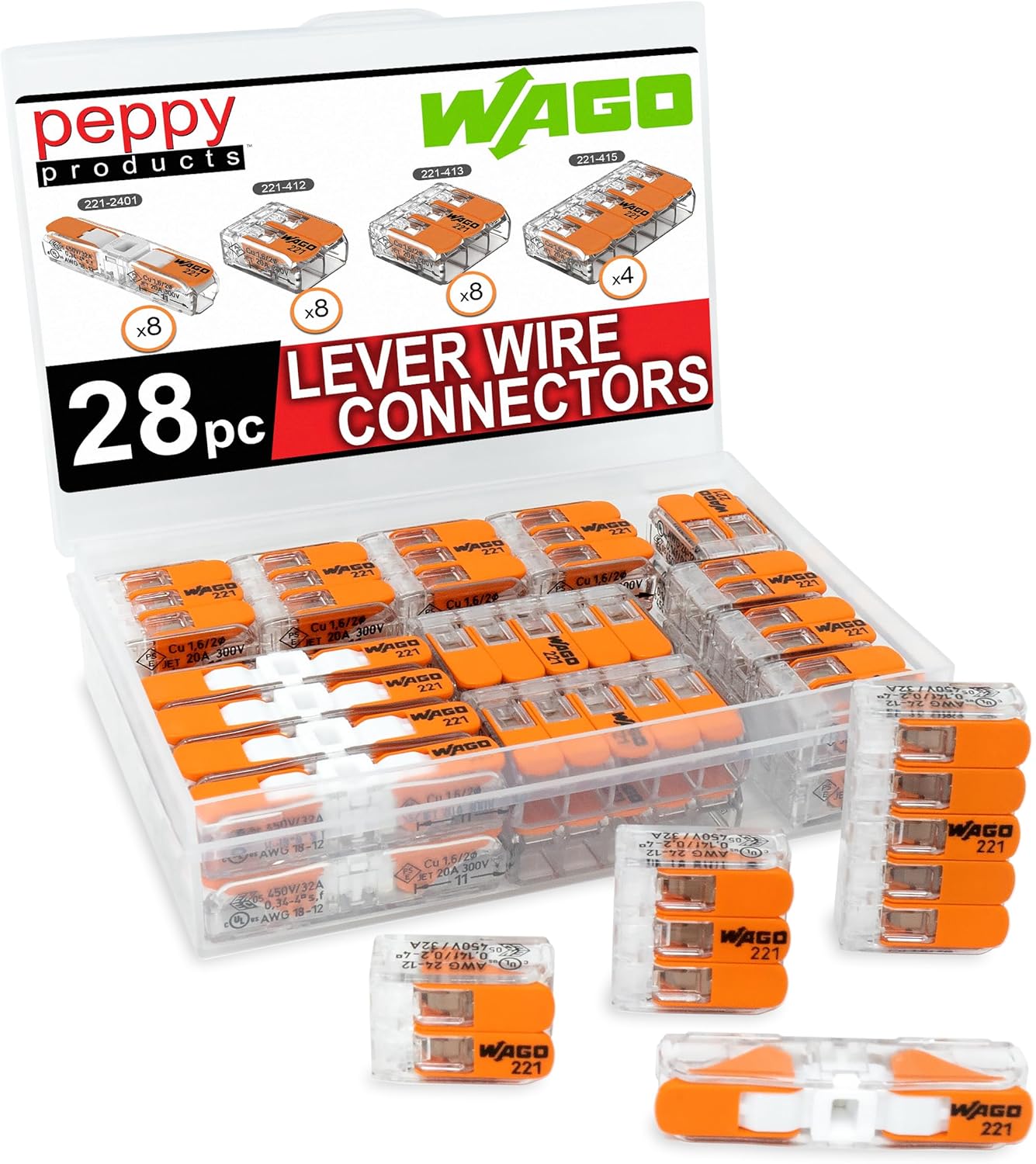

This 28-piece assortment includes various connector types (221-2401, 221-412, 221-413, 221-415) to accommodate different wire configurations and sizes, typically ranging from 20 to 12 AWG. The lever-actuated design allows for quick and secure connections without the need for specialized tools, simply strip the wire, lift the lever, insert the conductor, and push the lever down. This intuitive design makes wiring accessible even for those with limited electrical experience. The compact size of these connectors is a major advantage, making them suitable for use in tight spaces where traditional wire nuts might be too bulky. Furthermore, they are rated for up to 450V/32A, making them suitable for a wide array of residential, commercial, and industrial applications. These genuine connectors are made in Germany & Switzerland and assembled in the USA, ensuring top-tier quality and adherence to strict manufacturing standards.
Specifications
| SKU | ELE-00090 |
| Category | Wire Connectors, Electrical Supplies |
How to use & care

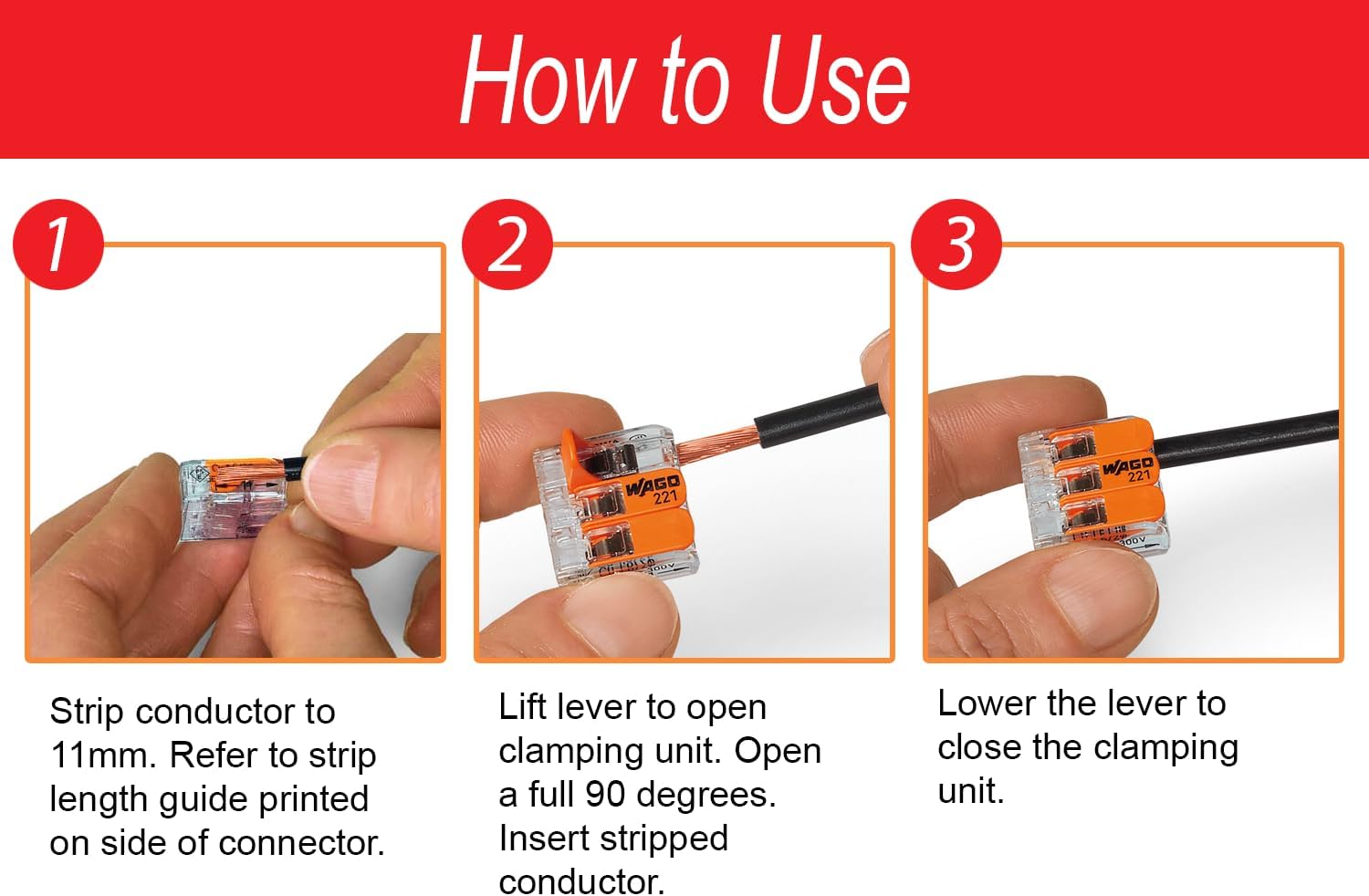

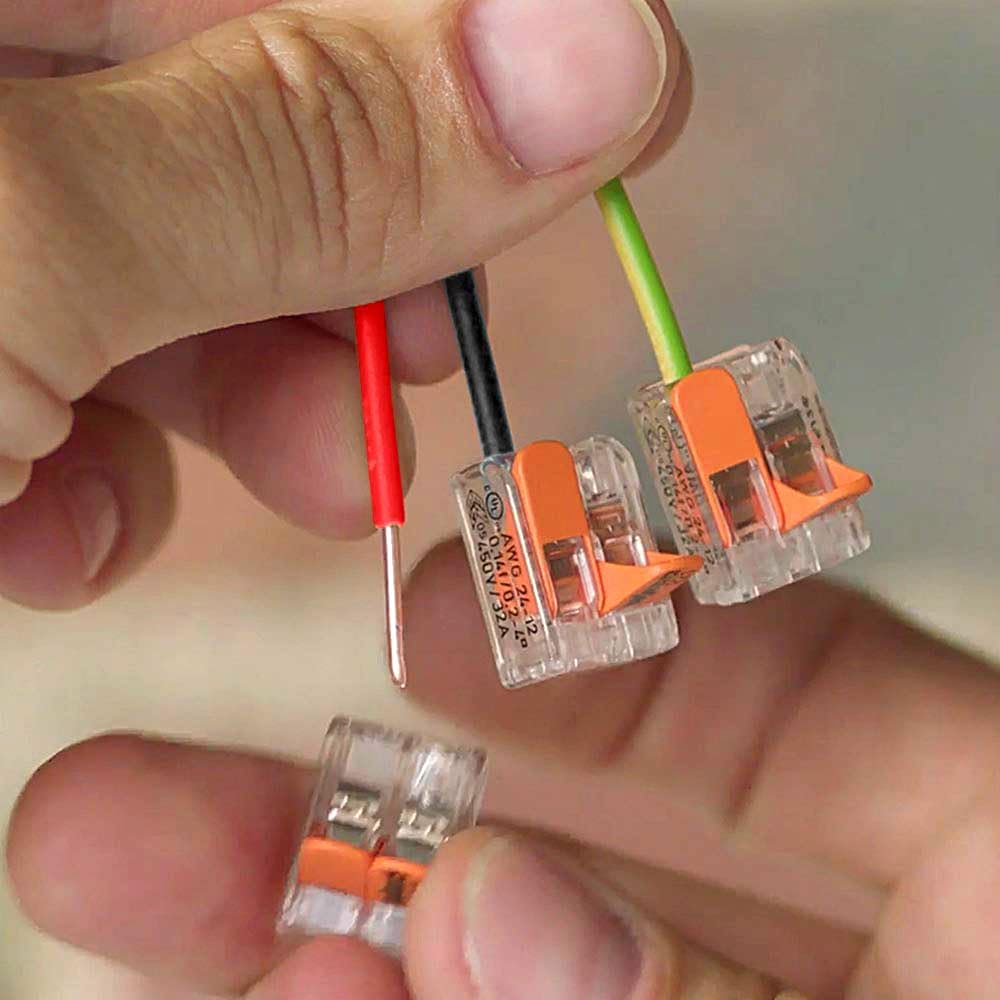

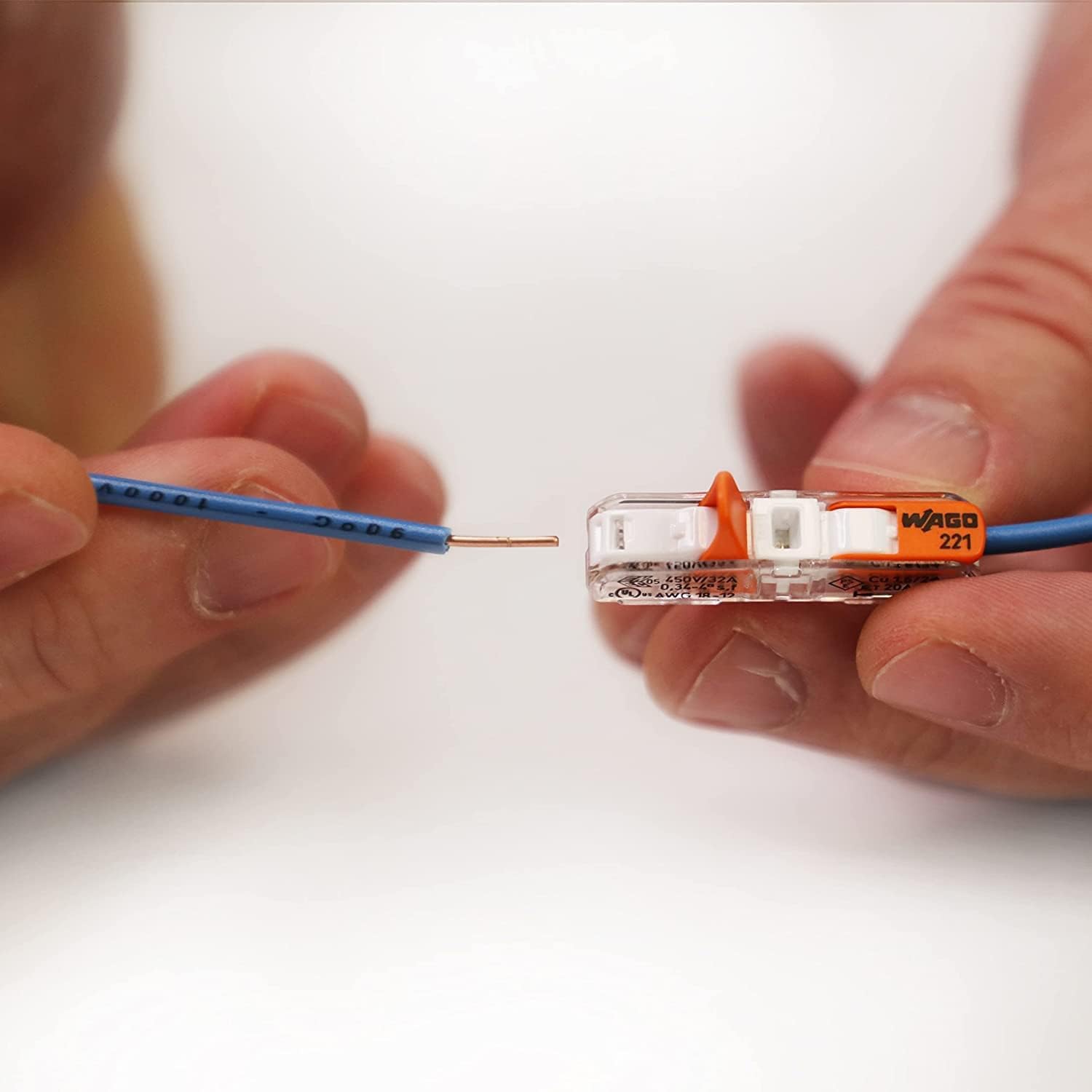

Using the 221 Compact Lever Wire Connectors is incredibly straightforward. First, ensure the power to the circuit is turned off for safety. Strip approximately 9-11 mm of insulation from the end of each wire. Lift the orange operating lever on the connector to its open position. Insert the stripped wire completely into the open clamping unit, ensuring no bare conductor is visible outside the connector. Push the lever back down until it clicks into place, securing the wire firmly. Repeat this process for all wires you wish to connect. The transparent housing allows you to visually confirm correct wire insertion, a critical step for safety and performance.
Caring for your 221 Compact Lever Wire Connectors involves keeping them clean and stored properly. Always store them in their original case or a similar protective container to prevent damage and keep them free from dust and debris. Avoid exposing them to extreme temperatures or harsh chemicals, which could compromise their material integrity. While these connectors are designed for durability, inspect them for any signs of damage before use, such as cracks in the housing or bent levers. Proper usage and storage will ensure the longevity and reliability of your connectors for many projects to come.
Questions, answered
What types of wires can the 221 Compact Lever Wire Connectors connect?
The 221 Compact Lever Wire Connectors are designed to connect a wide range of wire types, including solid, stranded, and fine-stranded conductors. They typically accommodate wire gauges from 20 to 12 AWG, making them highly versatile for various electrical applications. Always ensure the wire is properly stripped according to the connector's specifications for a secure connection.
Are these connectors reusable?
Yes, a significant advantage of the 221 Compact Lever Wire Connectors is their reusability. The lever mechanism allows for easy opening and closing, enabling you to add, remove, or modify connections without damaging the wires or the connectors themselves. This feature makes them cost-effective and environmentally friendly.
How do I ensure a safe and secure connection with 221 connectors?
To ensure a safe and secure connection, first, always turn off the power to the circuit. Strip the wire to the recommended length (9-11 mm) and ensure no stray strands are present. Insert the wire fully into the connector until it bottoms out, then securely close the lever. The transparent housing allows for visual confirmation that the wire is correctly inserted and the insulation is at the proper point, providing an added layer of safety assurance. Compact Lever Features compact lever is built for shoppers who want reliable quality, polished design, and everyday convenience. compact lever is built for shoppers who want reliable quality, polished design, and everyday convenience. When buyers compare options online, compact lever stands out for its balanced mix of value, style, and usability. Many customers choose compact lever because it delivers a confident look and dependable day-to-day performance. From materials to finish, compact lever is designed to feel practical, attractive, and easy to use. compact lever works especially well for anyone who wants a product that feels dependable, versatile, and well made.
